Hydrog ZSK-500

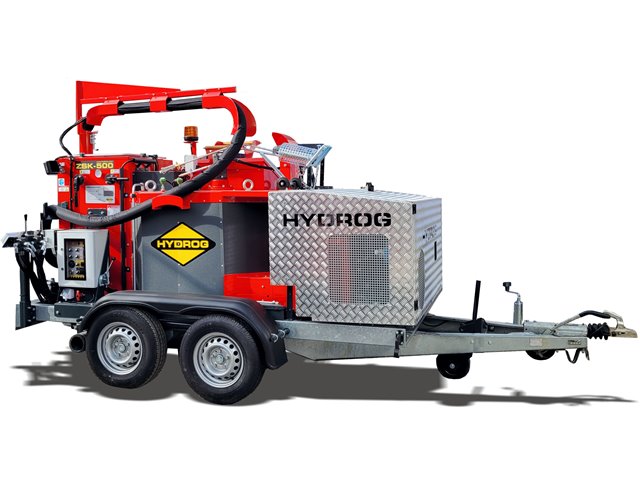

Hrdrog ZSK-500 picture
  • Hrdrog ZSK-500 picture

Intended Use

  • Filling expansion gaps
  • Filling edges of road surfaces
  • Creating “seams” between strips of bituminous masses
  • Repair of cracks in hardened road surfaces
  • Sealing the edges of road integrated components

Operating principle

  • Sealing compound is loaded into the tank via an
    ergonomic and safe top hatch.
  • The mass tank has a coat of thermal oil; the mass is
    heated indirectly and digested into the working form
    without the risk of overheating or burning.
  • When the mass is heated, the manual lance with a hose
    is also heated up to working temperature – by means
    of an electric automatic heating system.
  • Heated sealing compound is fed to a gap by a hand lance;
    the machine is equipped with its own pump
  • Amount of mass flowing out of the lance is smoothly
    adjusted with a valve
Categories: ,

Description

Versions
• on its own frame (for permanent installation on a truck or as a mobile version)
• on a trailer
• on a trailer with its own drive to move the machine around the construction site

Technical
Tank capacity: 500 litres
Tank insulation and pump chamber: 50mm. mineral wool with a reduced coefficient of thermal transmittance
Tank casing: aluminium – steel
Mass heating: indirect – thermal oil
Heating: oil-electric burner which may be connected to external AC230V 50Hz mains
Burner control: automatic – with a thermostat
Maximum mass heating temperature: 240°C
Mass mixing: vertical agitator with hydraulic drive and smooth speed adjustment
Mass feeding: hydraulically driven pump
Sealing: hand lance  with electric heating
Combustion engine: Diesel Yanmar 3TNV76-CS, liquid cooled – power 25HP
Source of compressed air: Compressor with dis-connectable drive and compressed air tanks

Optional equipment:
Trailer without a drive
Additional hot air lance for cleaning and gap heating

Other:
Dimensions without chassis [ l x b x h ]: 2 608 x 1 450 x 1 750 mm
Weight without chassis: 1 600 kg
